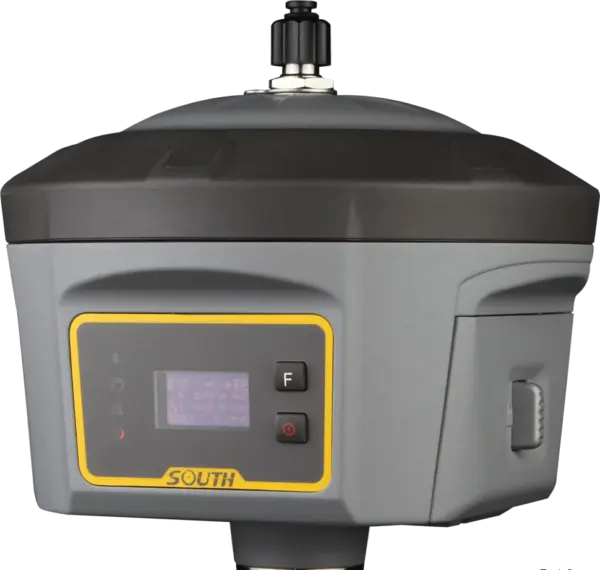

South Galaxy G6
$7,222 – $7,950
- CAD: $10,096.36 - $11,114.10
- During the Multiple constellation age, SOUTH keep developing and optimizing the innovative products for customers, SOUTH Galaxy G6 RTK system adopts intelligent cloud platform as its new engine, to lead the development or smart RTK system.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model G6 | Base Receiver, BD970, 220 channels,tilt, WebUI, WiFi, LED, 4G, UHF,410-470MHz, Rover Receiver, BD970, 220 channels,Tilt, WebUI, WiFi, LED, 4G, UHF,410-470MH, Base Receiver, BD990, 336 channels tilt, WebUI, WiFi, LED, 4G,UHF,410-470MHz, Rover Receiver, BD990,336 channels,Tilt, WebUI, WiFi, LED, 4G, UHF,410-470MHz |
Brand
South Instrument
Geomatics Gear - info@geomaticsgear.com - Call 1-888-410-1210. Equipment and software solutions for conventional, GNSS, UAV/drone, LiDAR, GIS, mapping and hydrographic equipment
Specification
| GNSS performance | Channels | 336, 220 (optional) |
| GPS | L1C/A, L1C, L2C, L2E, L5 | |
| GLONASS | L1C/A, L1P, L2C/A, L2P, L3 | |
| BDS | B1, B2, B3 | |
| GALILEO | E1, E5A, E5B, E5AltBOC, E6 | |
| SBAS | L1 C/A, L5 QZSS, WAAS, MSAS, EGNOS, GAGAN |
|
| L-Band | Trimble RTX | |
| Positioning output rate | 1Hz~50Hz | |
| Initialization time | <10s | |
| Initialization reliability | >99.99% | |
| Positioning precision | Static surveying | Horizontal: 2.5mm+0.5ppm RMS; Vertical: 5mm+0.5ppm RMS |
| Code differential positioning | Horizontal: 0.25m+1ppm RMS; Vertical: 0.50m+1ppm RMS | |
| Real-time kinematic surveying | Horizontal: 8mm+1ppm RMS; Vertical: 15mm+1ppm RMS | |
| RTX | Horizontal: 4-10cm; Vertical: 8-20cm | |
| SBAS positioning | Typically<5m 3DRMS | |
| xFill | Horizontal: 5+10mm/min RMS; Vertical: 5+20mm/min RMS | |
| IMU tilt compensation | Additional horizontal pole tip uncertainty typically less than 8 mm + 0.6 mm/° tilt down to 30° Tilt angle: 0°~ 60° |
|
| Single positioning | — | |
| User interaction | Operaing system | Linux |
| Buttons | Double buttons and visual operation interface | |
| LCD | 0.96 inch HD OLED screen, the resolution is 128 x 64 | |
| Indicators | — | |
| Web UI | Accessing by WIFI or USB mode to monitor the receiver | |
| Voice guide | iVoice intelligent voice technology provides status and operation voice promptly, Supports Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish | |
| Secondary development | Providing secondary development package, and opening the OpenSIC observation data format and interface definition for secondary development | |
| Data cloud service | Web page cloud service management platform, supporting online register etc | |
| Hardware performance | Dimension | 152mm (diameter) × 137mm (height) |
| Weight | 1.44kg (including battery) | |
| Material | Magnesium alloy shell | |
| Operating temperature | -45°C ~ +60°C | |
| Storag temperature | -55°C ~ +85°C | |
| Humidity | 100% Non-condensing | |
| Waterproof/Dustproof | IP67 standard, protected from long time immersion to depth of 1m, and fully protected against blowing dust | |
| Shock and vibration | MIL-STD-810G standard vibration test certified | |
| Power Supply | 9-25V wide voltage DC design, with overvoltage protection | |
| Battery | High capacity removable battery with the indicator displaying the power usage, 7.4V, 6800mAh/per | |
| Battery solution | Providing the 7 × 24h battery solution | |
| Battery life | More than 30h (static mode), More than 15h (RTK mode) | |
| Communications | I/O port | 5-PIN LEMO port, 7-PIN USB port (OTG), 1 network/radio data link antenna port, SIM card slot |
| Wireless modem | Integrated internal radio receiver and transmitter 1W/2W/3W | |
| Frequency Range | 403-473MHz | |
| Communication Protocol | Trimtalk450S, SOUTH, SOUTH+, SOUTHx, huace, ZHD, Satel | |
| Cellular Mobile Network | TDD-LTE, FDD-LTE 4G network modem | |
| Double Module Bluetooth | BLEBluetooth 4.0 standard, Bluetooth 2.1 + EDR standard | |
| NFC Communication | Realizing close range (shorter than 10cm) automatic pair between receiver and controller | |
| External Devices | — | |
| WIFI | Standard | IEEE 802.11 b/g |
| WIFI Hotspot | Adopting the WIFI hot spot function, any smart terminals (controller, cellphone and PC) can connect to the receiver easily | |
| WIFI data link | The receiver can transmit and receive correction via WiFi | |
| Data storage/ Transmission | Data Storage | 8GB internal storage, supports external USB data storage, changeable record interval, supports up to 50Hz raw data collection |
| Data Transmission | USB data transmission, FTP download, HTTP download | |
| Data Format | Static data format: STH, Rinex2.x and Rinex3.x etc Differential data format: CMR+, CMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 GPS output data format: NMEA 0183, PJK plane coordinates, binary code, Trimble GSOF Network model support: VRS, FKP, MAC, supporting NTRIP protocol |
|
| Inertial sensing system | Tilt survey | Built-in IMU module, calibration-free and immue to magnetic interference, correcting coordinates automatically according to tilt direction and angle |
| Electronic bubble | Controller software display electronic bubble, checking leveling status of the centering rod real time | |
| Thermometer | Built-in thermometer sensors, adopting intelligent temperature control tech nology, monitoring and adjusting the receiver temperature in real time |
Note: all information above is subject to change without any prior notice.
