South S66ON
- During the Multiple constellation age, SOUTH keep developing and optimizing the innovative products for customers, SOUTH S660N Network RTK Receiver adopts intelligent cloud platform as its new engine, to lead the development of smart network RTK system

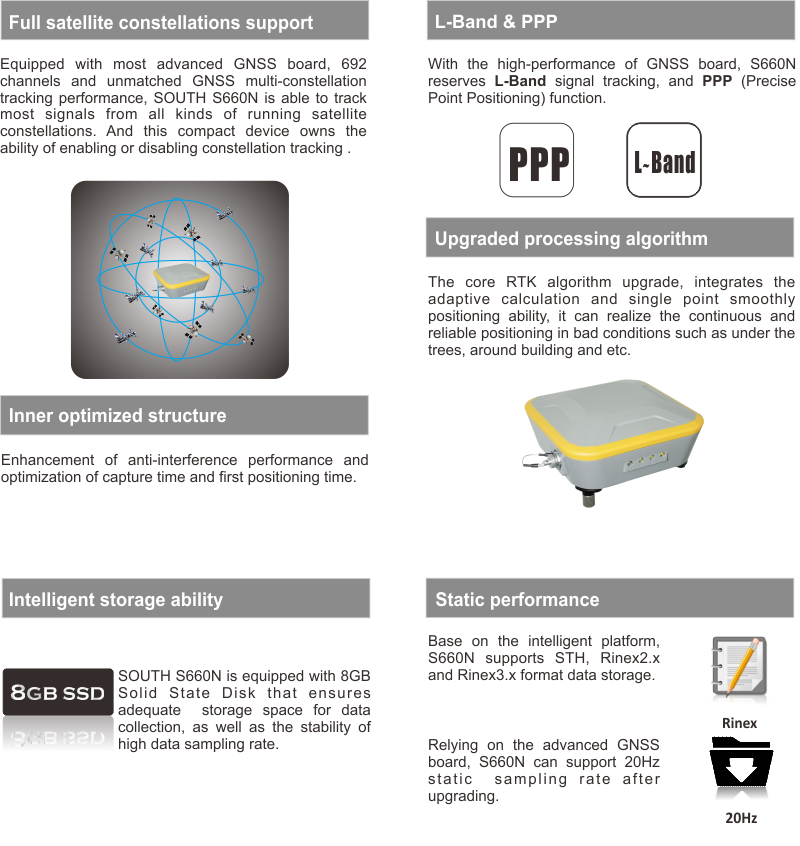

Features
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| S66ON | Receiver,K705, ,Lemo connector, built-in batteries, network RTK receiver, Receiver,BD940, RTX L BAND, Lemo connector, built-in batteries, network RTK receiver |
Specification
| GNSS performance | Channels | 336, 692 (optional) |
| GPS | L1, L2C, L2P, L5 | |
| GLONASS | L1, L2, L3 | |
| BDS | B1, B2, B3 (Optional) | |
| GALILEO | E1, E5A, E5B, E5AltBOC | |
| SBAS | L1 C/A, L5 QZSS, WAAS, MSAS, EGNOS, GAGAN | |
| L-Band | Trimble RTX | |
| Positioning output rate | 1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz (optional) | |
| Initialization time | <8 seconds | |
| Initialization reliability | >99.9% | |
| Positioning precision | Static surveying | Horizontal:0.0025m+1ppm; Vertical:0.005m+1ppm |
| Code differential positioning | Horizontal:0.25m+1ppm; Vertical:0.50m+1ppm | |
| Real-time kinematic surveying | Horizontal:0.0025m+1ppm; Vertical:0.005m+1ppm | |
| RTX | Horizontal:<0.1m (20-30min); Vertical:<0.2m (20-30min) | |
| SBAS positioning | — | |
| xFill | ||
| IMU tilt compensation | ||
| Single positioning | Horizontal:<1.0m; Vertical:<1.5m | |
| User interaction | Operaing system | Linux |
| Buttons | Single button operation | |
| LCD | — | |
| Indicators | 4 indicate lights | |
| Web UI | Freely to configure and monitor the receiver by accessing to the web server via WiFi and USB | |
| Voice guide | — | |
| Secondary development | — | |
| Data cloud service | — | |
| Hardware performance | Dimension | 115mm (L) × 115mm (W) × 40mm (H) |
| Weight | 540g (Internal battery included) | |
| Material | Magnesium aluminum alloy shell | |
| Operating temperature | -30℃ ~ +65℃ | |
| Storag temperature | -30℃ ~ +65℃ | |
| Humidity | 5% ~ 95% R.H. non-condensing | |
| Waterproof/Dustproof | Test to IP67 standard | |
| Shock and vibration | Withstand drop from 1.5m to concrete | |
| Power Supply | — | |
| Battery | 6800mAh, Li-ion battery built in, 3.7V | |
| Battery solution | — | |
| Battery life | Typically 8 hrs or more | |
| Communications | I/O port | LEMO port (Enable to switch to Ethernet port and OTG function) |
| Wireless modem | — | |
| Frequency Range | — | |
| Communication Protocol | — | |
| Cellular Mobile Network | — | |
| Double Module Bluetooth | Bluetooth V2.1/ Bluetooth V4.0, support EDR | |
| NFC Communication | — | |
| External Devices | — | |
| WIFI | Standard | 802.11 b/g standard |
| WIFI Hotspot | The WIFI hotspot allows any mobile terminal to connect and access to the internal webserver for the control and moditor receiver | |
| WIFI data link | To work as the datalink that receiver is able to broadcast and receive differential data via WIFI | |
| Data storage/ Transmission | Data Storage | 8GB SSD (Solid State Disk) internal memory, 1Hz, 2Hz, 5Hz,10Hz, 20Hz sampling rate |
| Data Transmission | — | |
| Data Format | Static data format: STH, Rinex2.x and Rinex3.x Reference I/O:CMR, CMR+, sCMRx, RTCM 2.x, RTCM 3.0, RTCM 3.1, RTCM 3.2 Standard NMEA-0183: GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS; Extended NMEA-0183: PSIC PST, GSI, BSI, VCV, TRA, SLB, EDP, TPI, TRI, VCM, STA, DEV, AAT, REC, DAL | |
| Inertial sensing system | Tilt survey | — |
| Electronic bubble | — | |
| Thermometer | — |
Note: all information above is subject to change without any prior notice.
Brochure Download
