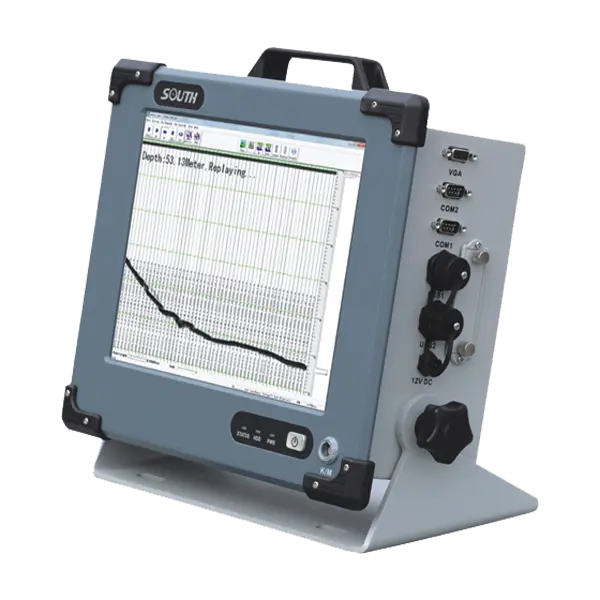

South SDE-28S+

$7,155

  • CAD: $10,017.00

●Embedded WindowsXP operating system, userfriendly interface
●Integrated with both computer and echo sounder at industrial level, yet low power consumption
●Full aluminum housing, compact and handy, particularly designed for less-than-ideal circumstances

SKU: 7001011 Category:

Features

SOUTH SDE-28S+ echo sounder is a kind of industrial control and digital echo sounder which is integrated with the 12.1-inch TFT-LCD screen, industrial control unit, echo sounding unit, data processor, internal memory unit and kinds of interfaces and I/O devices. The special design makes it dust-proof, waterproof, shockproof. It collects depth measurement, graphical navigation, positioning data, water depth data acquisition together. All these features make the instrument strong compatibility, stable performance and reliable accuracy.

Onboard Software

SDE-28S+ (for depth measurements)

·Real-time vivid display of graphic and data, easy approach to underwater waves

·Integrated sound velocity calculation for more accurate results

·Smart alarm for shallow water and  "No echo" tracking to secure hydrographic operations

·Real-time display of the water depth value tracking lines, easy to be compared with underwater waves


Auto change of depth range                                                          Real-time display

PowerNav (for navigation purpose)

·New software kernel, faster processing and more stable

·Professional Engineering map sheet and data management, wizard-style parameter setting

·High compatibility, flexible to import graphs and data, connectible to all GPS devices and echo sounders

·Modular designed, meets diverse needs of hydrographic engineering projects


Additional information

Weight 7.5 kg
Dimensions 350 × 300 × 150 mm

Brand

South Instrument

Geomatics Gear - info@geomaticsgear.com - Call 1-888-410-1210. Equipment and software solutions for conventional, GNSS, UAV/drone, LiDAR, GIS, mapping and hydrographic equipment
SOUTH-LOGO-4

Specification

Measurement Frequency 200 KHz
Beam angle
Depth resolution 0.01m
Accuracy 1cm ± 0.1% D (D is depth constant value)
Ping Rate 14Hz, Maximum 30Hz
Sound Velocity 1300-1700m/s, resolution is 1m/s
Depth Range 0.3-600m
Draft 0-9.9m
Gain Control AGC and TVG, depth and gain, a double door tracking
Output data format SOUTH, SDH-13D, DES025, INN455, ODOM etc
Physical Environmental -30℃ ~ 60℃ non-condensing
Output Power Up to 300w
Power Supply 9-15V DC, less than 25w, 110~265V AC (optional)
Display 12.1-inch color LCD touch screen
Interfaces 2 × USB, 2 × RS232, 1 × VGA
Dimension 35cm × 30cm × 15cm
Weight 7.5kg
Hardware Operating System Windows XP
CPU 1.6GHz
RAM 2G
ROM 16G

Note: all information above is subject to change without any prior notice.

Brochure Download

Download Brochure
