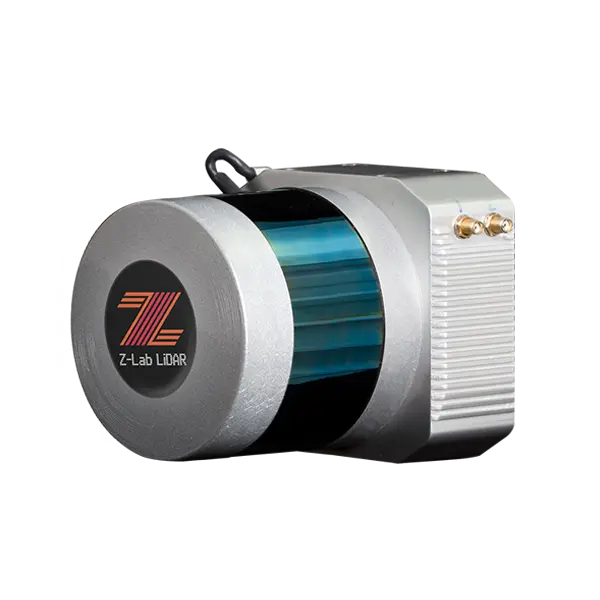

LiDAR SZT-V200
- ● Absolute accuracy down to 10 cm
- ● Extremely lightweight, less than 1.5 kg
- ● An economical LiDAR solution
- ● Multi-platform (UAV/SUV) applications
Additional information
| Weight | 1.6 kg |
|---|---|
| Dimensions | 132 × 112 × 123 mm |
Brand
South Instrument
Geomatics Gear - info@geomaticsgear.com - Call 1-888-410-1210. Equipment and software solutions for conventional, GNSS, UAV/drone, LiDAR, GIS, mapping and hydrographic equipment
Specification
| LiDAR System | Laser Channels | 32 channels |
| Laser Range | max. 200 m | |
| Field of View | +15.0° to -25.0° (40°) (Vertical); 360° (Horizontal) | |
| Angular Resolution | 0.33° (Vertical); 0.1° to 0.4° (Horizontal/Azimuth) | |
| Max. Means Rate | Single Return Mode: ~600,000 points per second Dual Return Mode: ~1200,000 points per second |
|
| Accuracy | Relative Accuracy: 5 cm; Absolute Accuracy: 10 cm | |
| Camera Effective Pixels | 24.3 MP, RGB | |
| Recommended scanning height AGL | 10-120 m | |
| Net Weight | 1.6 kg (w/o camera) | |
| Dimensions | 132 x 112 x 123 mm | |
| Input Voltage | 11-18 V DC | |
| Power Consumption | 22 W | |
| Data Storage | 256 GB SSD | |
| Part I: Laser Scanner | Type | Velodyne VLP-32 |
| Wavelength | 903 nm | |
| Eye Safety Class | — | |
| Laser Product Classification | Class 1 Eye-safe-per IEC 60825-1:2007 & 2014 | |
| Laser Pulse Repetition Rate | — | |
| Range Accuracy | up to ±3 cm (typical) | |
| Accuracy/ Precision | — | |
| Rotation Rate | 5 Hz ~ 20 Hz | |
| Scan Speed | — | |
| Multi-echo effect | 2 echo returns | |
| Data Storage | — | |
| Environment Protection | IP67 | |
| Temperature | operating: -10℃~60℃; storage: -40℃~80℃ | |
| Part II: POS System | Type | Inertial Labs INS-D-OEM |
| Gyroscopes Bias in-run Stability | 1 deg/hr (RMS, Allan Variance) | |
| Gyroscopes Measurement Range | ±450 deg/sec | |
| Accelerometers Measurement Range | ±8 g | |
| Post Processing Roll/Pitch Accuracy | 0.006 deg RMS | |
| Post Processing Heading Accuracy | 0.03 deg RMS | |
| Post Processing Position H/V Accuracy | 0.005/0.01 meters, RMS | |
| Post Processing Velocity H/V Accuracy | 0.02/0.01 meters/sec, RMS | |
| Data Sampling Rate | IMU: 200 Hz, GNSS positions: 5 Hz | |
| Internal Memory | — |
Note: all information above is subject to change without any prior notice.
