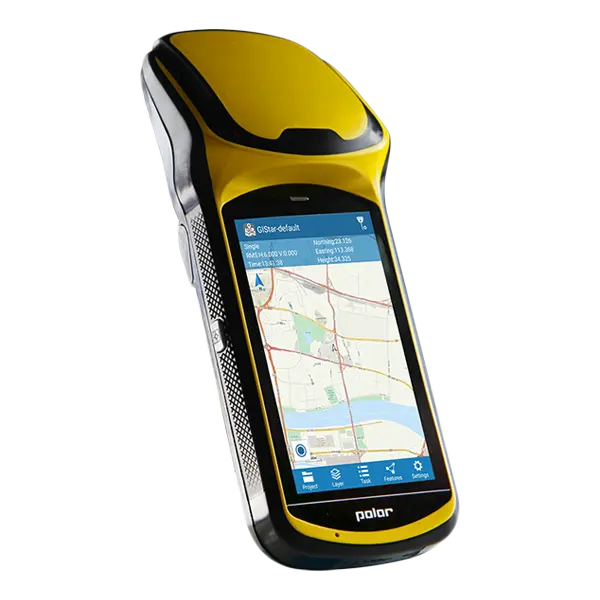

South X6
$4,450
- CAD: $6,221.10
Android,336 channels,L1&L2,GPS+GLONASS+BDS+GALILEO, Handheld RTK receiver, L band RTX, tracking, WM system,WiFi connnection, 4G
- ● HD large 5-inch touch screen which fulfill the Android users needs
- ● Android version supports multiple languages switch
- ● Quad-Core 1.3GHz processor
- ● Micro-USB port and OTG function
- ● Being equipped with laser centering component
- ● Multiple sensors and more extended functions
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 231 × 92 × 57 mm |
Brand
South Instrument
Geomatics Gear - info@geomaticsgear.com - Call 1-888-410-1210. Equipment and software solutions for conventional, GNSS, UAV/drone, LiDAR, GIS, mapping and hydrographic equipment
Specification
| System | Operating system | Android 5.1/ 6.0 |
| CPU | Octa-Core 1.5GHz | |
| Memory | 3GB RAM, 32GB ROM | |
| Storage | up to 128G extensible | |
| GNSS performance | Channels | 336 |
| GPS | L1, L2 | |
| GLONASS | L1, L2 | |
| BDS | B1, B2, B3 | |
| GALILEO | E1C, E5A, E5B | |
| SBAS | – | |
| QZSS | – | |
| Data output | NEMA-0183 | |
| I/O protocol | RTCM2.3 (1, 3, 9), RTCM31 | |
| Update rate | 1Hz | |
| Reacquisition | < 1s | |
| Warm start | – | |
| Cold start | < 30s | |
| Accuracy | Single positioning | 2m |
| SBAS positioning | Horizontal: 0.50m Vertical: 0.85m |
|
| DGNSS | Horizontal: 0.25m + 1ppm Vertical: 0.50m + 1ppm |
|
| RTK(baseline<30km) | Horizontal: 0.008m + 1ppm Vertical: 0.015m + 1ppm |
|
| Multimedia | Camera | 8.0 megapixel AF, flashlight |
| Display | 5.0 inch capacitive screen, 1280 × 720 | |
| Sensor | Electronic compass, gravity sensor, built-in thermometer, atmospheric pressure altimeter, light sensor and distance sensor (optional) | |
| Other function | Laser centering, external antenna port, integrated speakers and microphone | |
| Extended function(optional) | – | |
| Communication | network | LTE 4G modem |
| Bluetooth | BT4.0 downward compatible to BT2.1 + EDR | |
| WIFI | IEEE 802.11 b/g/n | |
| USB | Micro USB, support charging and OTG function | |
| Electrical | Battery | 3.7V, 7200mAh Li-Ion, 2 batteries (standard) |
| Battery life | Single battery > 10 hrs | |
| Battery charging | 2 stands charger, 4 hrs fast charging | |
| Environment | Waterproof/Dustproof | IP67 |
| Shockproof | 1.5m | |
| Humidity | – | |
| Operating temperature | – | |
| Storage temperature | -40℃ ~ 80℃ | |
| Physical | Dimension | 231mm(L) × 92mm(W) × 57mm(H) |
| Weight | 0.56kg (battery included) |
Note: all information above is subject to change without any prior notice.
