Kolida – K1 Pro

$7,222

  • CAD: $9,304.10

Flagship model of Kolida GNSS family! All Constellations, L-band, Inertial measurement, OLED screen, long endurance.

SKU: K1 Pro Category:
          5eba178e6e565.jpg The World Leading

GNSS Engine

The Maxwell 7 GNSS engine inside K1 PRO provides an ultra-fast positioning speed, typically it starts tracking satellite signal within 5 seconds after turning on, coordinate can be acquired within 10 seconds. (Default configuration is 336 channels,  672 channels is upgradable)

Star-Fill,

Save the Signal Loss

This new function will let you to continue working a few minutes when radio or mobile signal is becoming very poor or even lose in blind area.  The accuracy is down to 2cm.

See the video from    Star-fill of K1PRO, Kolida, professional survey equipment manufacturer

Brand

Kolida

Kolida – Geomatics Gear – info@geomaticsgear.com – Call 1-888-410-1210. Equipment and software solutions for conventional, GNSS, UAV/drone, LiDAR, GIS, mapping and hydrographic equipment

Kolida-logo

Additional information

Weight 1.33 kg
Dimensions 163 × 163 × 96 mm

Applications


The World Leading

GNSS Engine

The Maxwell 7 GNSS engine inside K1 PRO provides an ultra-fast positioning speed, typically it starts tracking satellite signal within 5 seconds after turning on, coordinate can be acquired within 10 seconds. (Default configuration is 336 channels,  672 channels is upgradable)

Star-Fill,

Save the Signal Loss

This new function will let you to continue working a few minutes when radio or mobile signal is becoming very poor or even lose in blind area.  The accuracy is down to 2cm.

See the video from  https://youtu.be/VvHJN6bkUDo


Star-Link,

Infinite Freedom

2cm accuracy Star-Link correction service is available! After subscribing to it, surveyors can work almost anywhere in the world without a base station or VRS network. Ideal solution for surveying and mapping, natural resource exploration in remote area.

(The photo left is a Kolida user who uses Star-Link to work in original forest in Sabah State, Malaysia, without base station and CORS network. Instrument model K5 infinity, photo time is late 2019)

10 Innovations

to Increase Efficiency

More than 10 programs or functions were re-designed to make your work flow simpler and smoother, let you to work easier and comfortable, help you to get more reliable working result.

Search “K1” on youtube.com to discover it.

         2

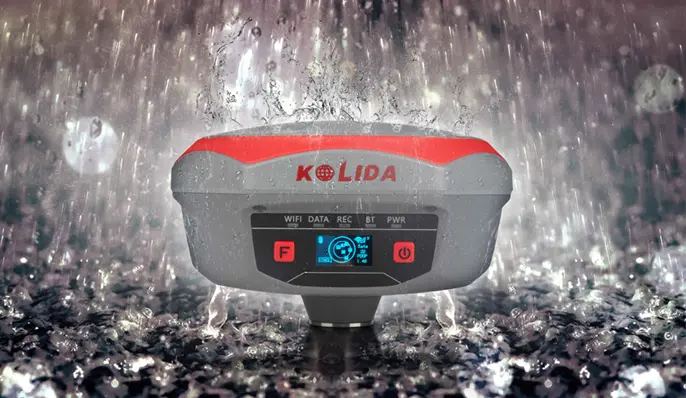

More Durable and Rugged

K1 PRO is fully sealed, has a IP 68 level proof.

The built-in battery has 10,000 mAh capacity and can work 8 to 14 hours as RTK rover, with only one recharge.

External battery case SA6003 can add 13,600 mAh and provide extra a few working hours. (SA6003 is an optional accessory)

Work Safer and Easier

Thanks to the inertial measurement technology, K1 PRO allows user to do a tilt survey with a maximum tilt angle of 60 °. Centering is not a must, so surveyors can stay in safe position when they measure on motorway, and don’t need to step into water .

         440k5a

Fast and accurate

Not like tilt sensor, Inertial Measurement Unit is no more affected by the earth’s magnetic field and requires no correction. It can be activated and start working within only few seconds, this fast positioning will increase measurement speed by over 30%.

The combination algorithm of IMU + GNSS can get fixed solution faster and keep measurement results more stable, accuracy is down to 2cm.



Measure where others can’t

Corner of wall? Points underneath pipe? Points occupied by car? These targets are no more accessible..



440k5a

Long Range Radio Link

SDL400 built-in radio can send signal as far as 7 km in urban area, 8 km in suburban. The maximum coverage is up to 200 sq.km, suitable to have multiple rovers work simultaneously.

Watch video at youtube.com: https://youtu.be/7YYwvT0ULbA



Barrier-Free

Measurement

In difficult environment you may lost connection with base station or VRS network. Don’t be disappointed, you can choose from 3 creative work modes to continue surveying without interruption. (Repeater/ Router/ Mobile Refenrence Station)

         440k5a

Anti-interference

SDL400 built-in radio features anti-interference capability, so K1 PRO can work close to power plant, transformer substation, mobile signal tower and other interference source.

Practical Functions

K1 PRO employs Linux system, it helps surveyors to accomplish their missions easier, faster and more accurate by delivering exceptional quality and innovative features.

1 6a

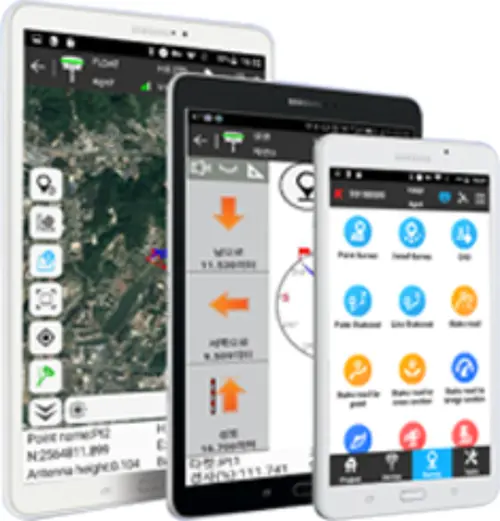

New app.   New Productivity

Windows CE data controller is too old technology?

No problem. Simply download SurvX App on your smart phone or tablet.

Enjoy the smooth operation of Android platform !

Post-processing Sw.   Free of Charge

KOLIDA GEO Office integrates

static data processing & Kinematic data adjustment

Video Demonstration:  https://www.linkedin.com/pulse/2020-new-model-k1-k20s-series-increase-your-efficiency-andy-lau/

Specification

Satellite Tracking Ability
Channels336 or 672 channels ConstellationGPS, GLONASS, BEIDOU, GALILEO, SBAS, QZSS MMS L-BandStar-Fill (default), Star-Link (optional)
Positioning Output Rate1-50 HZ Initialization Time<10s

Positioning Precision
UHF RTKHorizontal ±8mm +1 ppm
Vertical      ±15mm +1 ppm
Network RTKHorizontal ±8mm +0.5 ppm
Vertical      ±15mm +0.5 ppm
Star-Link by L-bandHorizontal ±2cm
Vertical      ±5cm
Static and Fast-Static
Horizontal ±2.5mm +0.5 ppm
Vertical      ±5mm +0.5 ppm
RTK Initial time

2-8s

User Interaction
Operation SystemLinux Screen Display1 inch LCD
wifiYes
Voice Guideyes, 8 language Data Storage8 GB internal, 32GB external
Web UIYes
Keypad2 physical buttons
Working Capability
RadioBuilt-in emitting and receiving, typical working range 1-8 km  Tilt Survey
Inertial Measurement
Electronic BubbleYes
Endurance>14 hours (static mode), >7 hours (internal UHF base mode), 8 to 14 hours (rover mode) OTG (Field Download)

yes

Other Function

Mobile reference station, Repeater, Router
