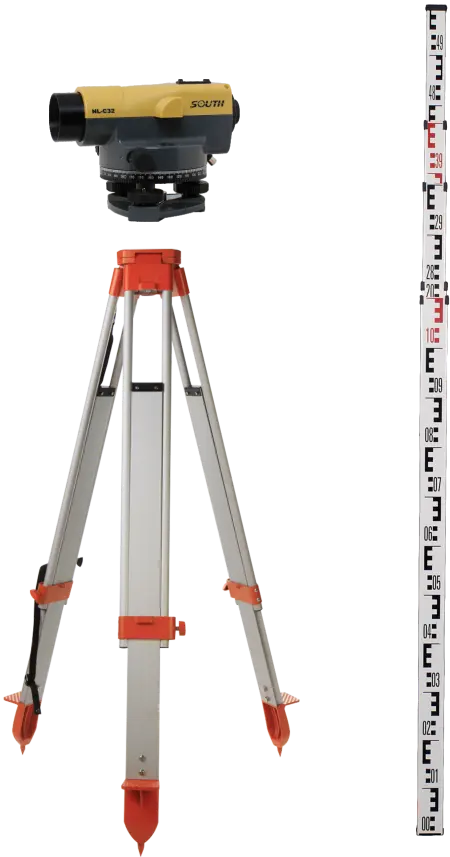

South NL-C32
$96
- CAD: $131.10
NL-C32
- ● 32X Telescope ● Air Damping Compensator ● Light & Durable Tool for Levelling
Model: NL-C32
Features
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 440 × 320 × 440 mm |
Brand
South Instrument
Geomatics Gear - info@geomaticsgear.com - Call 1-888-410-1210. Equipment and software solutions for conventional, GNSS, UAV/drone, LiDAR, GIS, mapping and hydrographic equipment
Specification
| Auto Level | Magnification | 32x |
| Effective Objective Aperture | 40mm | |
| Image | Erect | |
| Reticle | Cross Reticle | |
| Field of View | 1°20′ (2.3m /100m) | |
| Minimum Focus Distance | 0.3m | |
| Multiplication Constant | 100 | |
| Additive Constant | 0 | |
| Compensator Type | Air Damping | |
| Compensator Range | ±15′ | |
| Compensator Setting Time | ＜3s | |
| Compensator Setting Accuracy | ±0.3″ | |
| Standard 1km Deviation | 1.0mm | |
| Sensitivity of Bubble | 8′ /2mm | |
| Circle Graduation | 360° or 400 gon (Minimum 1°or 1 gon) | |
| Protection Class | IP54 | |
| Working Temperature | -20℃ ～ +50℃ | |
| Storage Temperature | -40℃ ～ +70℃ | |
| Net Weight per Unit | 1.8kg | |
| Package Size (4 PCS/CTN) | 440×320×440mm | |
| Gross Weight (4 PCS/CTN) | 10kg |
Note: all information above is subject to change without any prior notice.
Brochure Download
