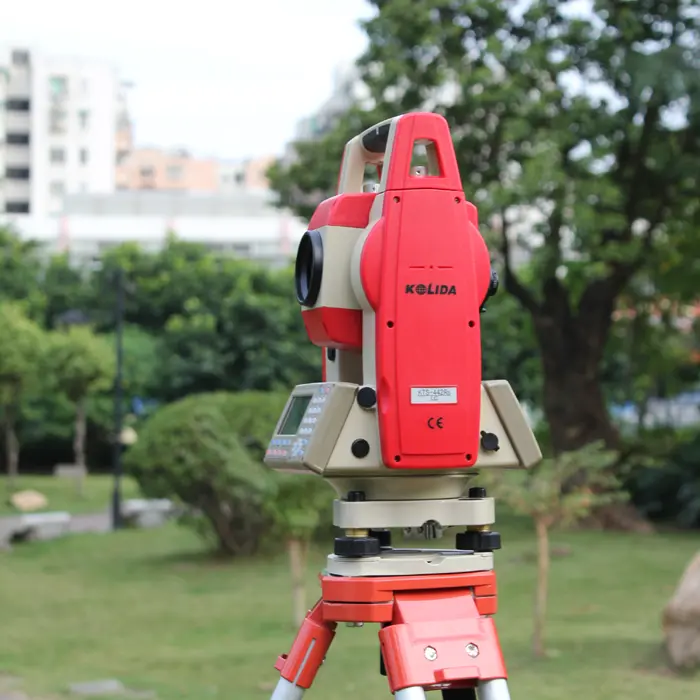

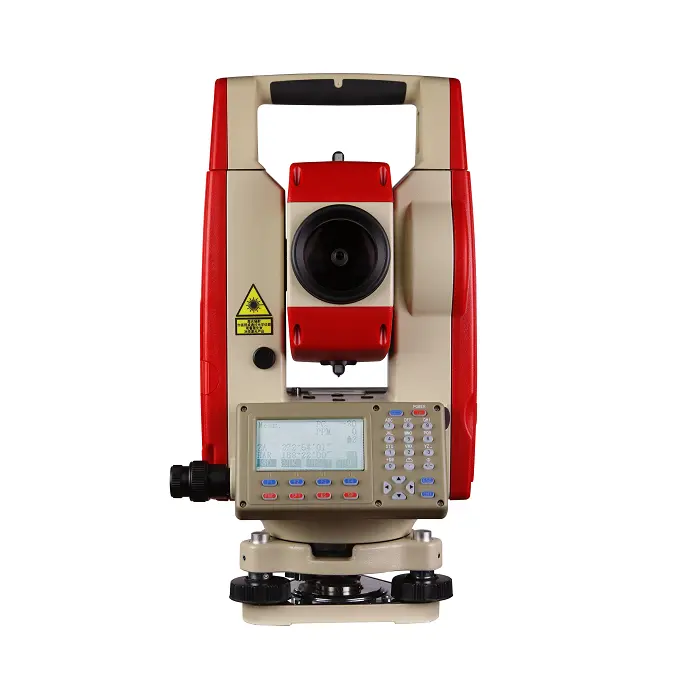

KTS-442LLC
This reliable, powerful, cost efficient Manual Total Station features laser plummet and SD card.
| Distance Measurement | ||
| Measurement Range1 prism: 3500-4000m3 prism: 5000m | AccuracyPrism: ±(2+2ppmx D)mm | Measuring TimePrism: 0.1 - 1.3s |
| Atmosphere CorrectionManual Input | Prism Constant CorrectionManual Input | |
| Angle Measurement | ||
| Measurement MeAbsolute Encoding |
Accuracy2" |
Minimum Reading0.1"/ 1" optional |
| CompensatorDual Axis Liquid-electricRange ±4', Accuracy 1" | ||
| User Interaction | ||
| Operation SystemDOS | Color ScreenN/A |
Touch ScreenN/A |
| KeyboardFull Alphanumeric keys with backlight | Trigger KeyN/A | Bluetooth & wifiN/A |
| Internal Storage4Gb, 40,000 points | External Storage
up to 32GB SD card |
|
| Working Capability | ||
| ProgramCoordinate measurement, setout, area, road design... | Graphic Display N/A |
Laser Pointer & Laser PlummetYes |
| Endurance12 hours | Setout Guide Light
N/A |
Camera Function
N/A |
Additional information
| Weight | 5.7 kg |
|---|---|
| Dimensions | 160 × 150 × 330 mm |
Brochure Download
