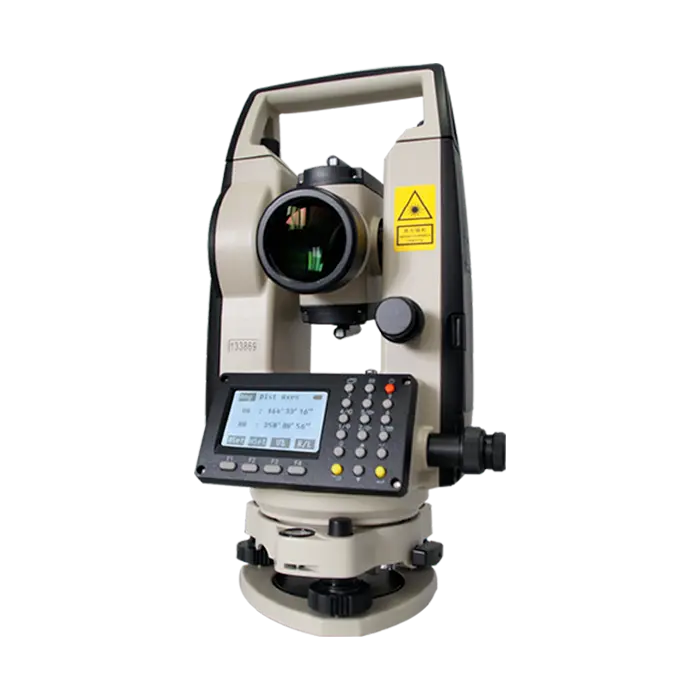

Kolida Multi-Function Theodolite NT-023
This innovative product features distance measuring sensor and setout program.
| Distance Measurement | ||
| Measurement Range1 prism: 300m | Accuracy±(3+2ppmx D)mm | Measuring TimePrism: 0.35 - 1.5s |
| Atmosphere CorrectionManual Input | Prism Constant CorrectionManual Input | |
| Angle Measurement | ||
| Measurement MeAbsolute Encoding |
Accuracy2" |
Minimum Reading1" |
| CompensatorSingle Axis Liquid-electricRange ±3', Accuracy 3" | ||
| User Interaction | ||
| Operation SystemDOS | Color ScreenN/A |
Touch ScreenN/A |
| KeyboardFull Numeric with backlight | Trigger KeyN/A |
Bluetooth & wifiN/A |
| Internal StorageN/A | External Storage
N/A |
|
| Working Capability | ||

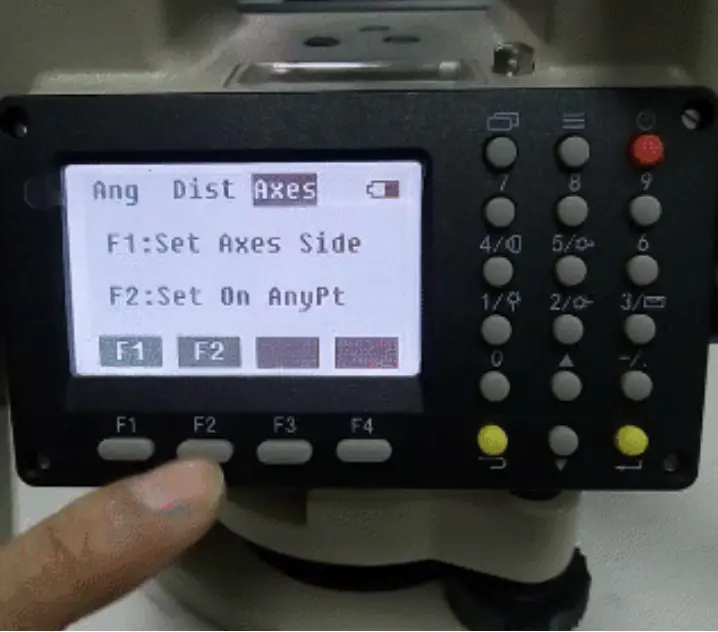

| ProgramAxis Setout | Graphic Display N/A |
Laser Pointer & Laser PlummetYes |
| Endurance8 hours distance measurement | Setout Guide Light
N/A |
Camera Function
N/A |
Additional information
| Weight | 4.7 kg |
|---|---|
| Dimensions | 165 × 160 × 340 mm |
| Model | NT-023, NT-023F |
Brochure Download
