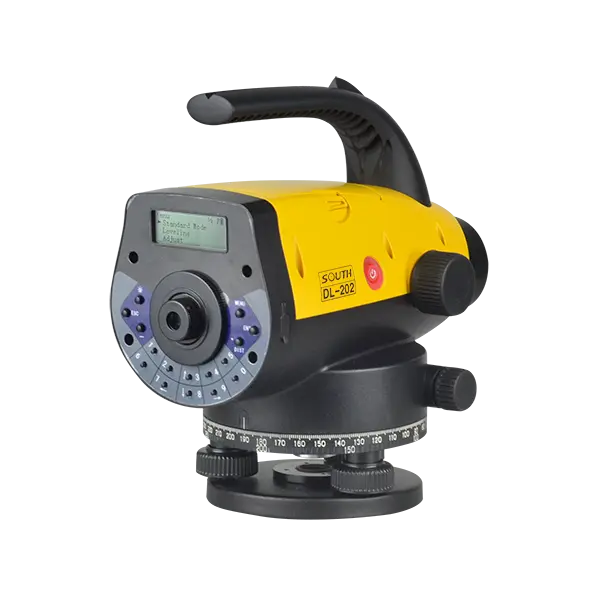

South DL-202 Level
● Accuracy:
Height: 1.5mm; Distance: D≤10m:10mm; D>10m:D*0.001
● Measure and Record by Trigger Key
● Two-Lines LCD Display with Illumination
● Easy-to-Use Onboard Program
1.5mm/1km accuracy; Trigger Key
Features
Versatile Onboard Program
South DL series Digital Level guarantee your fast and efficient operation in leveling by its powerful onboard program. Combine with the automatic processing , station checking and over-tolerance alarming function, South DL Series Digital Level can easily calculate the height difference and the cumulative stadia difference on the field.
Wide Applications
Topographic survey
(detail and area measurement, contour line and occupied point settlement)
Tunnel, railway and road constructions
(cross-section leveling, slope control, abrasion monitoring, etc.)
Deformation monitoring
(settlement observation, loading check)
Industrial measurement
(The leveling for base or foundation settlement about machines, ground and platform.)
Additional information
| Weight | 2.5 kg |
|---|---|
| Dimensions | 230 × 150 × 210 mm |
Specification
| Height Accuracy (standard deviation for 1km double run leveling) | Digital Reading | 1.5mm |
| Optical Reading | 2.0mm | |
| Distance Accuracy | Digital Reading | D≤10m:10mm; D>10m:D*0.001 |
| Distance Range | Digital Reading | 2m~110m |
| Minimum Display | HD | 0.1mm/ 1mm |
| Distance | 0.1/ 1cm | |
| Measuring Time | within 3s in normal condition | |
| Telescope | Magnification | 32X |
| Resolving Power | 3″ | |
| Field of View | 1°30′ | |
| Multiple Constant | 100 | |
| Additive Constant | 0 | |
| Compensator | Type | magnetic-damped |
| Range | >±12′ | |
| Accuracy | 0.50″/ 1′ | |
| Data Storage | Storage | 16MB |
| Point Name | increasing | |
| Connection | USB | |
| External Storage | — | |
| Circular vial Accuracy | 8’/ 2mm | |
| Display | 128*32dpi LCD with illumination | |
| Working Temperature | -20°C ~ 50°C | |
| Dimension | 230mm X 150mm X 210mm | |
| Weight | 2.5kg | |
| IP Standard | IP54 |
Note: all information above is subject to change without any prior notice.
Brochure Download
