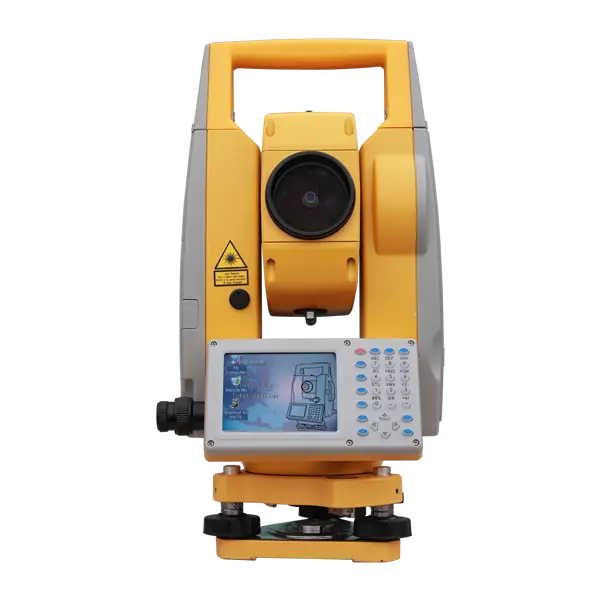

South N7/N9 Series
$3,980 – $7,780
- CAD: $5,725.23 - $11,191.53
● 1”/ 2” Accuracy, Up to 2000m Non-Prism EDM
● Ultra-Fast Measurement in 0.3s
● Windows CE 6.0 with WinTS, WinEG & WinMG Software
● Cable-Free Connection by Wireless Bluetooth
Features
World's First- Dual Laser EDM
South N7/N9 Series
features:
1. WinCE 6.0 OS onboard, Field Genius onboard
2. 3.5 inchcolor and touch screen with resolution 640*480
3. Dual compensator with range ±4′ and 1″ accuracy
4. 2″ angel measurement accuracy
5. 2mm+1ppm Reflector accuracy,3.5km single prism measurement range
6. 3mm+2ppm Reflectorless accuracy, 600m Reflectorless measurement range
7. Ultra measure speed, Fine mode 0.3S, track mode 0.1s
8. Bluetooth and wifi standard configured
9. Laser plummet standard, optical plummet optional
10. Data transfer options: SD card,USB mini-B,USB OTG,RS232
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | N7, N9, N70 |
Brand
South Instrument
Specification
| Distance Measurement | Reflectorless | N7 Series: 1000 /1500 /2000m N9: 1000m |
| Single Prism | N7 Series: 5000m N9: 3500m |
|
| Accuracy: Non Prism | 3+2ppm | |
| Accuracy: Prism | N7 Series: 2+2ppm N9: 1+1ppm |
|
| Sheet | N7 Series: 2+2ppm N9: 1+1ppm |
|
| Measurement Time | 0.3s In Fine 0.1s In Tracking |
|
| Atmospheric Correction | Manual Input, Auto Correction | |
| Prism Constant | Manual Input, Auto Correction | |
| Temperature Correction | Sensor Reading, 0.2ppm Accuracy | |
| Distance Reading | Max: 99999999.9999m Min: 0.1mm | |
| Angle Measurement | Accuracy | N7 Series: 2″ N9: 1″ |
| Method | Absolute, Continuous | |
| Disk Diameter | 79mm | |
| Detection Method | V: Quadruple, H: Quadruple | |
| Angle Reading | Min: 0.1″ | |
| Telescope | Image | Erect |
| Tube Length | 154mm | |
| Effective Aperture | 48mm (EDM 50mm) | |
| Magnification | 30x | |
| Field Of View | 1°30″ | |
| Resolving Power | 3″ | |
| Minimum Focus Distance | 1.2m | |
| Reticle Illumination | 4 Brightness Levels | |
| Keyboard And Display | Keyboard | Alphanumeric 28 Keys |
| Display | 3.5 Inches, Color Touch | |
| Resolution | 640*480 dpi | |
| Position | Face 1, Face 2 | |
| Operation System | Operation System | Windows CE 6.0 |
| Processor | Intel PXA310 | |
| Memory | 128M DDR, 512M NAND FLASH | |
| Interface | WIFI | 802.11 |
| Bluetooth | Class II, V2.0+EDR | |
| SD Card | Yes | |
| Serial Port | Yes | |
| Mini USB | Yes | |
| Mirco USB | None | |
| USB Flash Disk | USB OTG | |
| SIM Card | None | |
| Compensator | System | Liquid, Dual Axis |
| Working Range | ±4′ | |
| Accuracy | 1″ | |
| Plummet | Laser Plummet (Default) | |
| Accuracy | ±1.5mm @1.5m | |
| Laser Brightness | Adjustable | |
| Wavelength | 630-670nm | |
| Laser Class | Class 2 /IEC60825-1 | |
| Laser Power | <0.4mW | |
| Optical Plummet (Optional) | ||
| Image | Erect | |
| Magnification | 3x | |
| Focusing Range | 0.5m — | |
| Field Of View | 5″ | |
| Accuracy | 1.5mm @1.5m | |
| Battery | Type | Lithium |
| Voltage | 7.4V | |
| Operating time | 6 hours | |
| Vial | Plate Vial | 30″ /2mm |
| Circular Vial | 8′ /2mm | |
| General | IP Rate | IP55 |
| Temperature Range | -20°C — +50°C | |
| Dimension | 196*192*360mm | |
| Weight | 6.2kg | |
| Others | – | |
| Others | – | |
| Others | – |
Note: all information above is subject to change without any prior notice.
